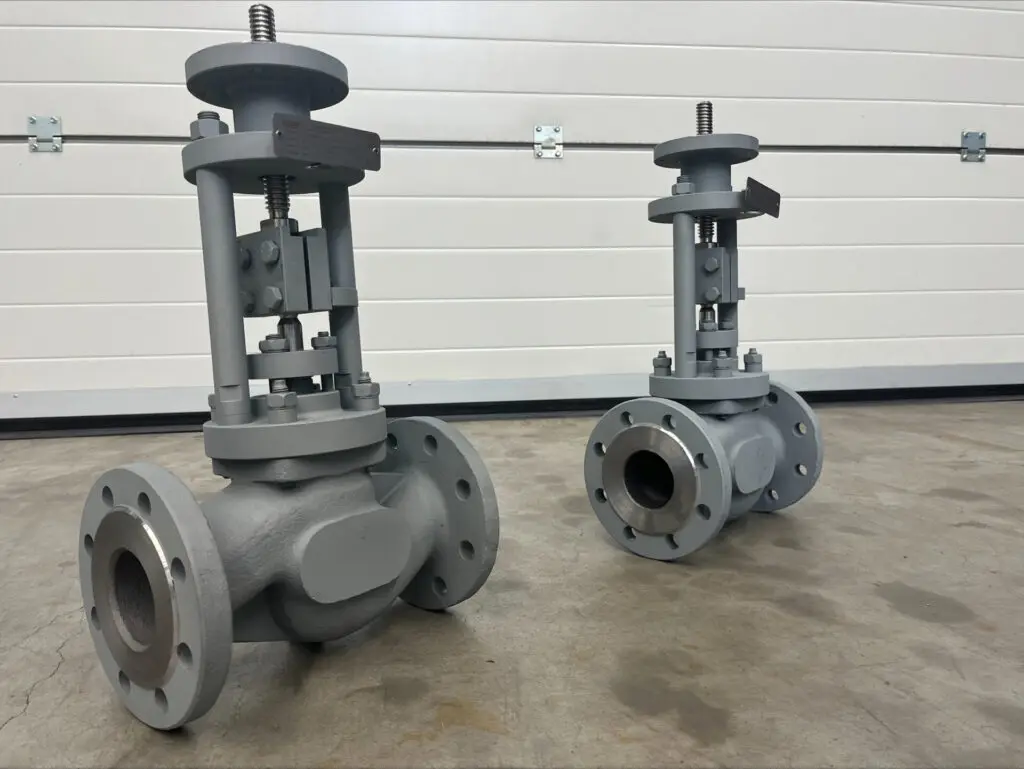

New valves for a modern waste disposal company
1. Control valve in straightway form Type ADRV-65-65-50-PN40 Overall length: 290 mm Nominal size / pressure stage: Inlet DN65 / PN40 Outlet DN65 / PN40 Material: P250GH Design: Flange design Design parameters Calculation pressure: Inlet: 18 bar Outlet: 18 bar Calculation temperature: Inlet: 300 °C Outlet: 300 °C Seat: Ø 55mm Stroke Kvs: 63 m³/h […]
… and the second follows immediately
1. Preheater Protection Inlet Valve, 3-Way Valve Type APPIV-200-200-100-PN250 Nominal size: 200/200 Dimensions of pipe connection: Inlet / outlet: 219,1 x 20 mm Body Material: 1.5415 (16Mo3) Seat diameter Ø 130 mm Valve stroke = 50 mm Design pressures: 179 bar Design temperatures: 230 °C Hydrostatic pressures: 375 bar 2. Preheater Protection Outlet Valve, 3-Way […]
Our first project for a Finnish industrial equipment supplier
Preheater Protection Inlet Valve 3-Way Valve Type APPIV-125-125-80-40-PN160 Nominal size: 125/125 Dimensions of pipe connection: Inlet / outlet: 139,7 x 8,8 mm Body Material: 1.5415 (16Mo3) seat diameter Ø 80 mm valve stroke = 40 mm Design pressures: 150 bar Design temperatures: 185 °C Hydostatic pressures: 240 bar Preheater Protection Outlet Valve 3-Way Valve Type […]
Steam Stop Valve for an internationally operating chemical group
Type ADAV 80-80-80-PN63 Valve Body Type: Globe Body Material: 1.7357 Body Size DN100 Flange Size DN80 Connection Inlet: Flange DN80 PN63 Form B2 Outlet: Flange DN80 PN63 Form B2 Material 1.7335 Design Pressure Inlet: 31bar Outlet: 31bar Design Temperature Inlet: 500 DegC Outlet: 500 DegC Installation parts Seat: Ø85 Stroke: 45mm Kvs: 240m³/h No of […]
Lever safety valves for a large steel producer
Inlet flange: DN200, PN10 Outlet flange: DN400, PN10 Body in welded design Seat diameter: 200mm Overall length: 795 mmSet pressure: 2,1 bar Material: S355JR with mounted oil brake Material certificates according to EN 10204-3.1 Final inspection EN 10204-3.2 with type approval 3 pieces
April showers bring May flowers: Gate valve bottle drain
Type AKS-150-150-140-AR5 Nominal width: DN 150 Material: 13CrMo 44 (1.7335) Seat diameter 140 mm Calculation pressure: 260 bar Calculation temperature: 422°C Differential pressure for actuator sizing: 285 bar with body overpressure protection Type AGBS / DN15 Equipment part with safety function Shut-off valve with additional sealing via ball through medium and with integrated bursting disc […]
Designed and manufactured for a German company in the food industry
Steam forming station with downstream motive steam injection Water inlet via spring-loaded injection nozzle in the outlet Inlet: DN 200 / PN 250 Material: 10CrMo 910 (1.7380) Outlet: DN 400 / PN 64 Material: 16Mo3 (1.5416) Calculation pressure: Inlet: 100 bar / Outlet: 45 bar Calculation temperature: Inlet: 535 °C / Outlet: 450 °C Seat: […]
Discharge control valve for a German power plant
Type AARV-50-50-38-PN400 DN50 / PN400 Calculation pressure: 196 bar Calculation temperature: 520°C Material: 10CrMo910 (1.7380)
Turbine valves for an Austrian plant
– Turbine control valves Steam-converting valve Type ADUV-80-80-60-PN100 Body design in Z-shape Calculation pressure: 35 bar Calculation temperature: 430°C Material: 16Mo3 (1.5415) 1 piece Water control valve with pneumatic actuator Type AWRV-15-15-12-PN160 1 piece – Tap valve Check valve with auxiliary actuator Type ARK-80-80-PN100 Body design in straight-through form Calculation pressure: 35 bar Calculation temperature: […]
Manufactured according to customers’ needs
Injection valve in angle form with special length Type AWRV-25-25-15-PN160 DN25 / PN 160 Material: 16Mo3 (1.5415)
