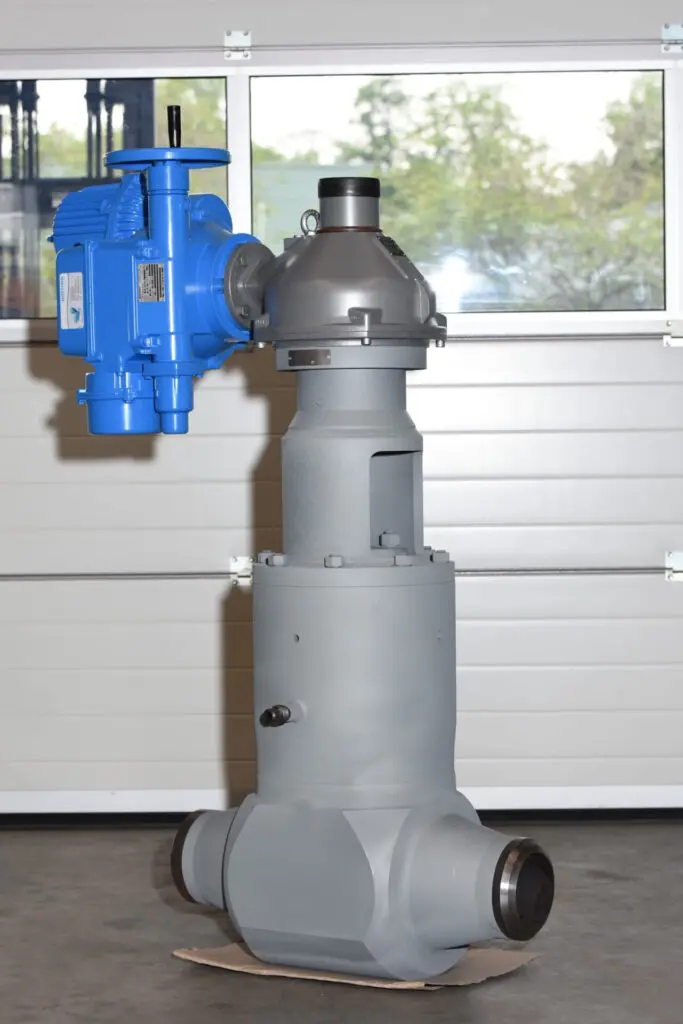

April showers bring May flowers: Gate valve bottle drain

Type AKS-150-150-140-AR5
Nominal width: DN 150
Material: 13CrMo 44 (1.7335)
Seat diameter 140 mm
Calculation pressure: 260 bar
Calculation temperature: 422°C
Differential pressure for actuator sizing: 285 bar


body overpressure protection
Type AGBS / DN15
Equipment part with safety function
Shut-off valve with additional sealing via ball through medium
and with integrated bursting disc
connection: DN 15
connection: welding end D. 22,3 x 12,3 mm
Material: 13CrMo 44 / 1.7335
Calculation pressure: 750 bar
Calculation temperature: 300°C
manually operated; Standard: EN 12516-2

More news

Drain Control Valve

Type AWRV-250-250 Pipe Size Inlet: DN250 End Connection: Buttwelded Material 1.6368 (15NiCuMoNb45) Outlet: DN250 End Connection: Buttwelded Material 1.5415 (16Mo3) Dimensions of pipe connection: Inlet:…
