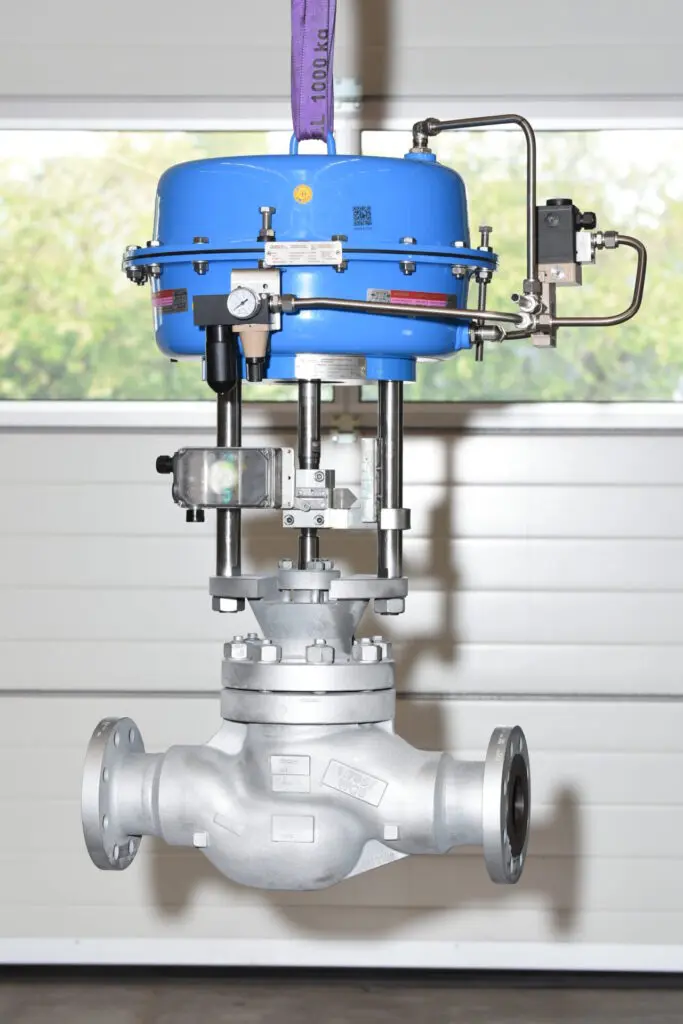

Type ADAV 80-80-80-PN63
Valve Body Type: Globe
Body Material: 1.7357
Body Size DN100
Flange Size DN80
Connection
Inlet: Flange DN80 PN63 Form B2
Outlet: Flange DN80 PN63 Form B2
Material 1.7335
Design Pressure
Inlet: 31bar
Outlet: 31bar
Design Temperature
Inlet: 500 DegC
Outlet: 500 DegC
Installation parts
Seat: Ø85
Stroke: 45mm
Kvs: 240m³/h
No of Stages: On/Off
Actuator:
pneumatical actuator
