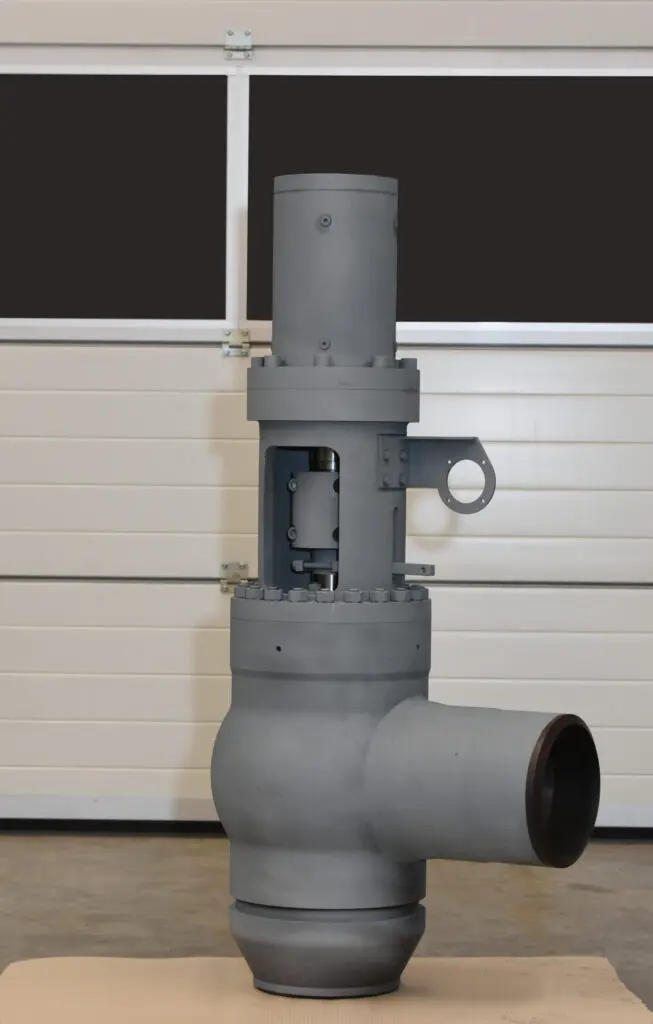

Manufactured for a Turkish power plant: Feed Water Control Valve

Type AWRV-250-250
Data Sheet No.: 9.7035.20.309.01

Pipe Size
Inlet: DN250
End Connection: Buttwelded
Material 1.6368 (15NiCuMoNb45)
Outlet: DN250
End Connection: Buttwelded
Material 1.5415 (16Mo3)

Dimensions of pipe connection:
Inlet: 273*17,5 mm
Outlet: 273*17,5 mm
Body Material: 1.5415 (16Mo3)
Design Pressure:
Inlet: 223bar
Outlet: 18bar
Design Temperature
Inlet: 375°C
Outlet: 380°C

Seat: Ø80/125
Stroke: 90mm
No of Stages: 1
Leak Class: IV

Control cone with drain contour
Hard coating
hydraulic actuator 200/100
Oil supply pressure 120bar

Body: machined from forged steel
Outlet: with integrated protective tube
